Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |
Contact Type: | Sleeve & Plunger (Pogo Pins) |
Mounting Type: | Through Hole, Solder Cup |
Maximum Working Height: | 0.194" (4.93mm) |
Recommended Working Height: | 0.166" (4.23mm) |
Minimum Working Height: | 0.139" (3.53mm) |
Pad Layout Dimension: | Circular - 0.083" (2.11mm) (TH) |
Operating Force - Initial: | 25gf |
Operating Force - Mid Compression: | 60gf |
Plunger Size: | 0.042" (1.07mm) Dia |
Features: | 22 AWG |
Mating Cycles: | 1000000 |
Contact Material: | Beryllium Copper |
Contact Finish: | Gold |
Contact Finish Thickness: | 20.0µin (0.51µm) |

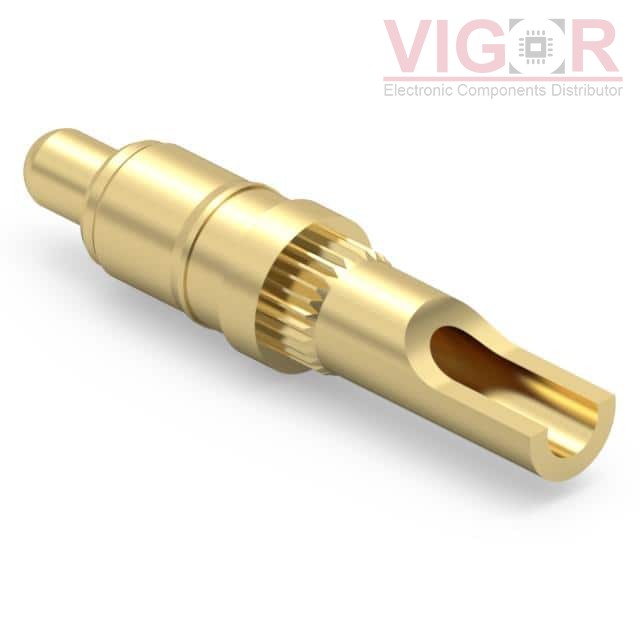

SPRING-LOADED PIN WITH SOLDER CU
