Type | Description |
---|---|
Series: | 0965 |
Package: | Bulk |
Part Status: | Active |
Contact Type: | Sleeve & Plunger (Pogo Pins) |
Mounting Type: | Surface Mount |
Maximum Working Height: | 0.100" (2.54mm) |
Recommended Working Height: | 0.088" (2.24mm) |
Minimum Working Height: | 0.076" (1.93mm) |
Pad Layout Dimension: | Circular - 0.072" (1.83mm) |
Operating Force - Initial: | 25gf |
Operating Force - Mid Compression: | 115gf |
Plunger Size: | 0.042" (1.07mm) Dia |
Features: | - |
Mating Cycles: | 1000000 |
Contact Material: | Copper Alloy |
Contact Finish: | Gold |
Contact Finish Thickness: | 20.0µin (0.51µm) |

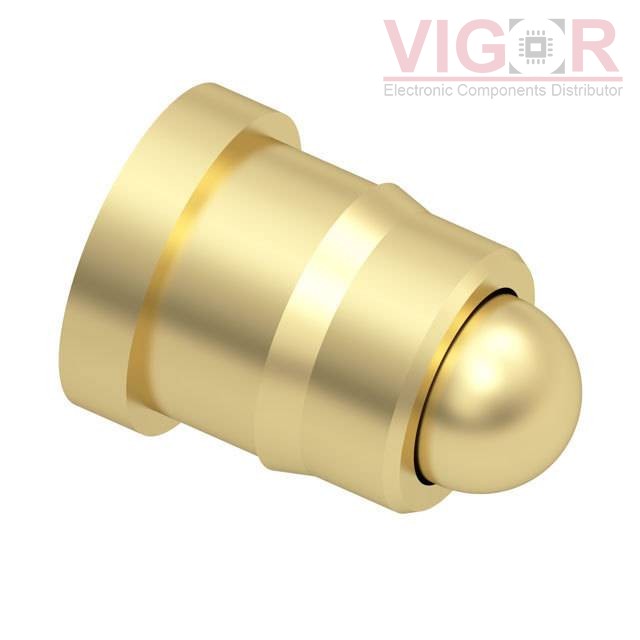

CONTACT SPRING LOADED SMD GOLD
