807-22-001-30-001101

807-22-001-30-001101

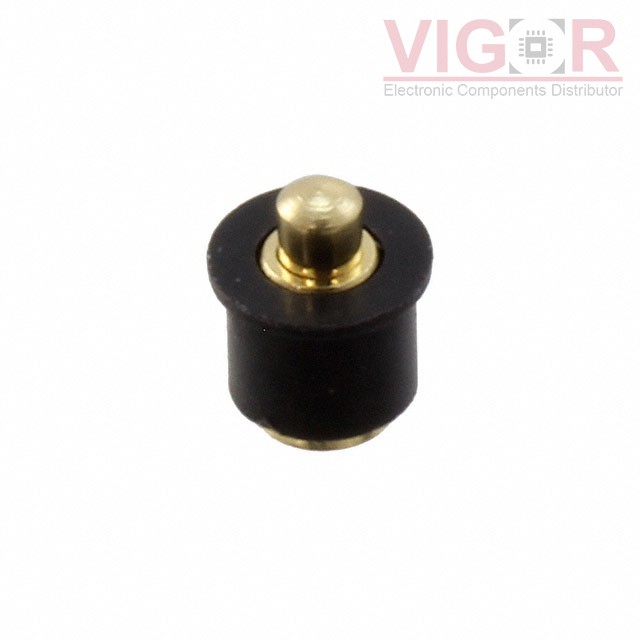

Image is for reference,
please contact us to get the real picture

Part No :

807-22-001-30-001101

Manufacturer
Mill-Max
Description
CONTACT SPRING LOADED SMD GOLD
Catalog
Contacts, Spring Loaded (Pogo Pins), and Pressure
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
807-22-001-30-001101 PDF
Availability
1084 pieces
Unit Price
$0.69000

Current price of 807-22-001-30-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

807-22-001-30-001101 Specifications
Type Description
Series:807
Package:Bulk
Part Status:Active
Contact Type:Sleeve & Plunger (Pogo Pins)
Mounting Type:Surface Mount
Maximum Working Height:0.137" (3.48mm)
Recommended Working Height:0.117" (2.98mm)
Minimum Working Height:-
Pad Layout Dimension:Circular - 0.072" (1.83mm)
Operating Force - Initial:25gf
Operating Force - Mid Compression:60gf
Plunger Size:0.042" (1.07mm) Dia
Features:Pick and Place
Mating Cycles:1000000
Contact Material:Copper Alloy
Contact Finish:Gold
Contact Finish Thickness:20.0µin (0.51µm)
