09565527613

09565527613

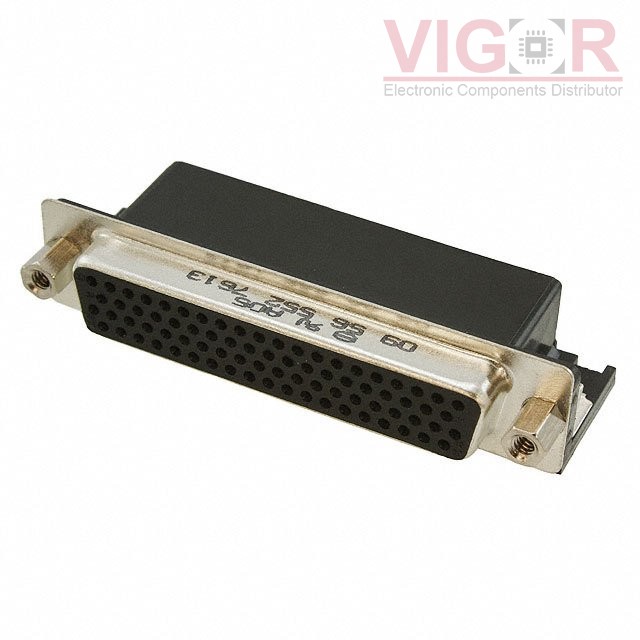

Image is for reference,
please contact us to get the real picture

Part No :

09565527613

Manufacturer
HARTING
Description
CONN D-SUB HD RCPT 78P R/A SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
09565527613 PDF
Availability
157 pieces
Unit Price
$20.11000

Current price of 09565527613 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09565527613 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Style:D-Sub, High Density
Connector Type:Receptacle, Female Sockets
Number of Positions:78
Number of Rows:4
Mounting Type:Through Hole, Right Angle
Shell Size, Connector Layout:5 (DD, D) High Density
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:-
Contact Finish Thickness:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A
Backset Spacing:0.350" (8.89mm)
Features:Board Lock
