580-M09-103L001

580-M09-103L001

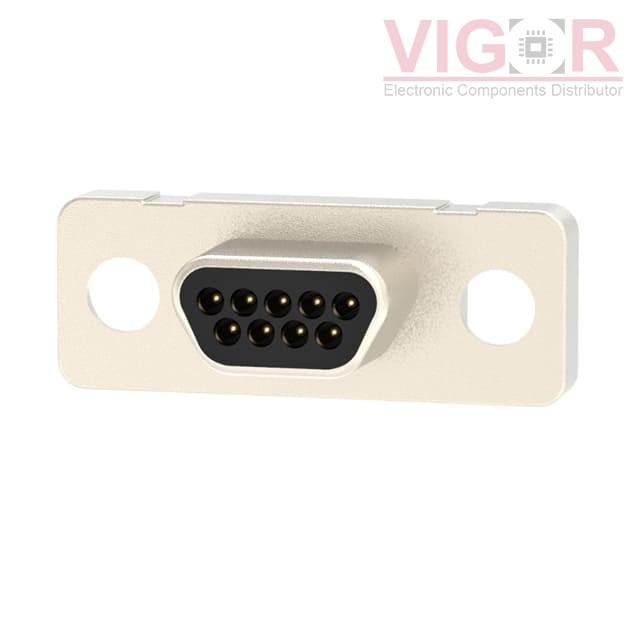

Image is for reference,
please contact us to get the real picture

Part No :

580-M09-103L001

Manufacturer
NorComp
Description
CONN MICRO-D MALE 9P SC 15U"
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
580-M09-103L001 PDF
Availability
108 pieces
Unit Price
$20.16000

Current price of 580-M09-103L001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

580-M09-103L001 Specifications
Type Description
Series:580
Package:Tray
Part Status:Active
Connector Style:D-Type, Micro-D
Connector Type:Plug, Male Pins
Number of Positions:9
Number of Rows:2
Mounting Type:Panel Mount
Shell Size, Connector Layout:0.050 Pitch x 0.043 Row to Row
Contact Type:Signal
Flange Feature:Housing/Shell (Unthreaded)
Termination:Solder Cup
Shell Material, Finish:Zinc Alloy, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A
Backset Spacing:-
Features:Shielded
