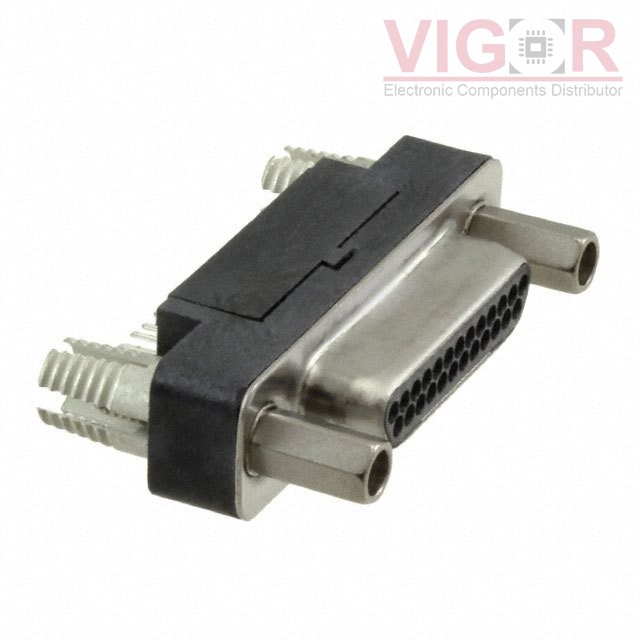

Image is for reference,
please contact us to get the real picture

Part No :

0836149016

Manufacturer
Woodhead - Molex
Description
CONN MICRO-D PLUG 25P VERT SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
0836149016 PDF
Availability
13 pieces
Unit Price
$19.36000

Current price of 0836149016 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0836149016 Specifications
Type Description
Series:Commercial Micro-D Series 83614
Package:Tube
Part Status:Active
Connector Style:D-Type, Micro-D
Connector Type:Plug, Male Pins
Number of Positions:25
Number of Rows:2
Mounting Type:Through Hole
Shell Size, Connector Layout:0.050 Pitch x 0.050 Row to Row
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (2-56)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold
Contact Finish Thickness:15.0µin (0.38µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):1A
Backset Spacing:-
Features:Board Lock, Shielded
