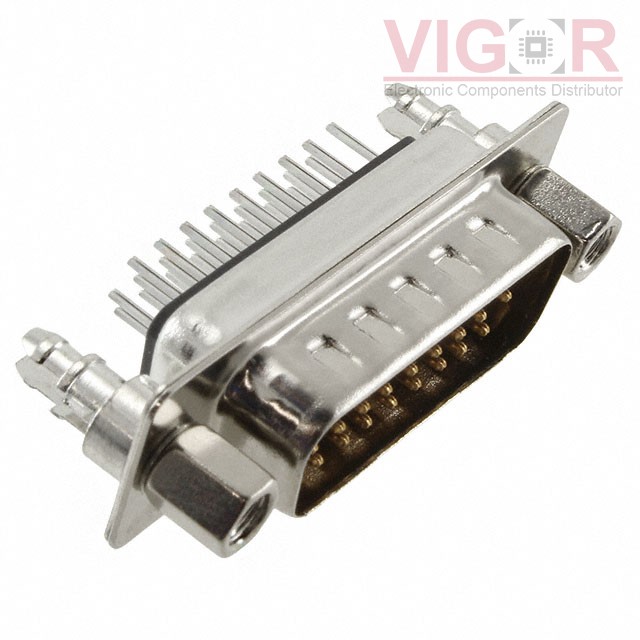

Image is for reference,
please contact us to get the real picture

Part No :

09562615713

Manufacturer
HARTING
Description
CONN D-SUB HD PLUG 26P VERT SLDR
Catalog
D-Sub Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 22 - Jul 26 2025
DataSheet
09562615713 PDF
Availability
39 pieces
Unit Price
$6.31000

Current price of 09562615713 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09562615713 Specifications
Type Description
Series:-
Package:Bulk
Part Status:Active
Connector Style:D-Sub, High Density
Connector Type:Plug, Male Pins
Number of Positions:26
Number of Rows:3
Mounting Type:Through Hole
Shell Size, Connector Layout:2 (DA, A) High Density
Contact Type:Signal
Flange Feature:Mating Side, Female Screwlock (4-40)
Termination:Solder
Shell Material, Finish:Steel, Nickel Plated
Contact Finish:Gold or Gold-Palladium
Contact Finish Thickness:30.0µin (0.76µm)
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Current Rating (Amps):2A
Backset Spacing:-
Features:Board Lock, Grounding Indents
