2345-C24TD2T

2345-C24TD2T

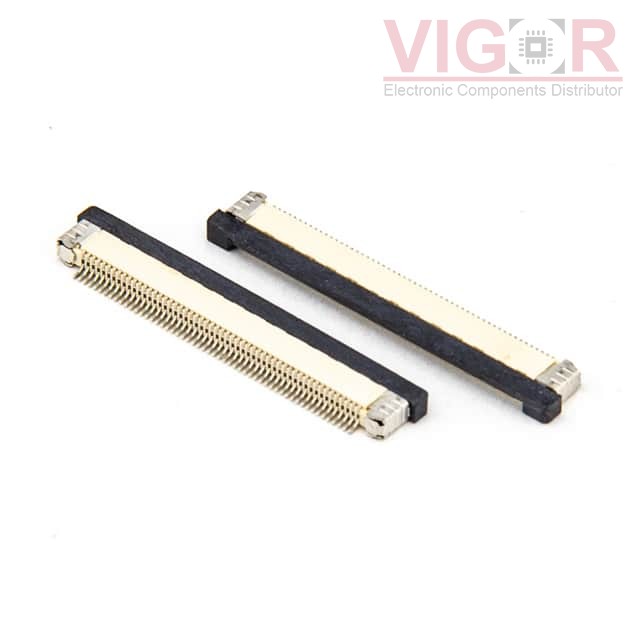

Image is for reference,
please contact us to get the real picture

Part No :

2345-C24TD2T

Manufacturer
Oupiin
Description
FFC/FPC SOCKET, .5MM PITCH, 24 P
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 04 - May 08 2024
DataSheet
2345-C24TD2T PDF
Availability
0 pieces
Unit Price
$0.75000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 2345-C24TD2T is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

2345-C24TD2T Specifications
Type Description
Series:2345-C
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:24
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-45°C ~ 85°C
Material Flammability Rating:UL94 V-0
