5020782510

5020782510

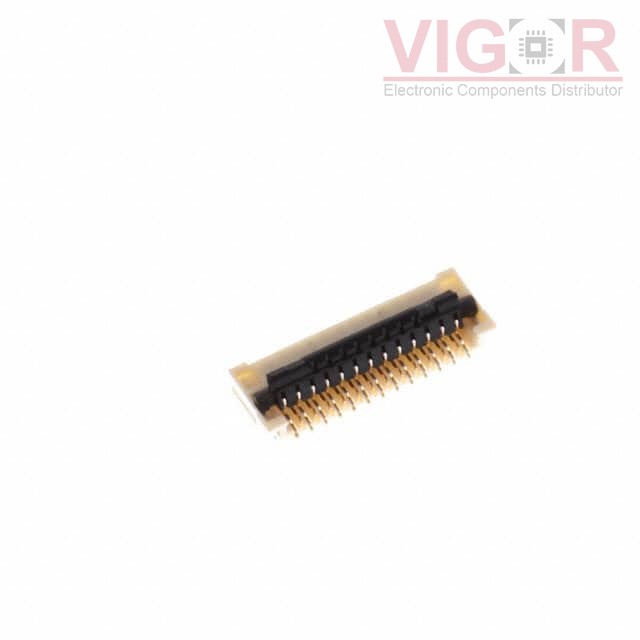

Image is for reference,
please contact us to get the real picture

Part No :

5020782510

Manufacturer
Woodhead - Molex
Description
CONN FPC BOTTOM 25POS 0.25MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
5020782510 PDF
Availability
0 pieces
Unit Price
$1.13763

Current price of 5020782510 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5020782510 Specifications
Type Description
Series:Easy-On 502078
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:25
Pitch:0.010" (0.25mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Plastic, Glass Filled
Actuator Material:Plastic, Glass Filled
Features:-
Voltage Rating:50V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
