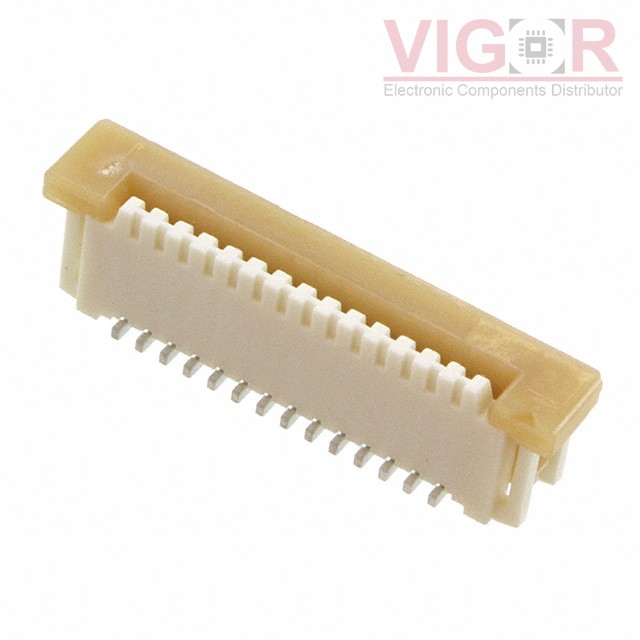

Image is for reference,
please contact us to get the real picture

Part No :

0526101472

Manufacturer
Woodhead - Molex
Description
CONN FPC VERT 14POS 1.00MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
0526101472 PDF
Availability
510 pieces
Unit Price
$1.60000

Current price of 0526101472 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0526101472 Specifications
Type Description
Series:Easy-On 52610
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:14
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.226" (5.74mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
