0039532205

0039532205

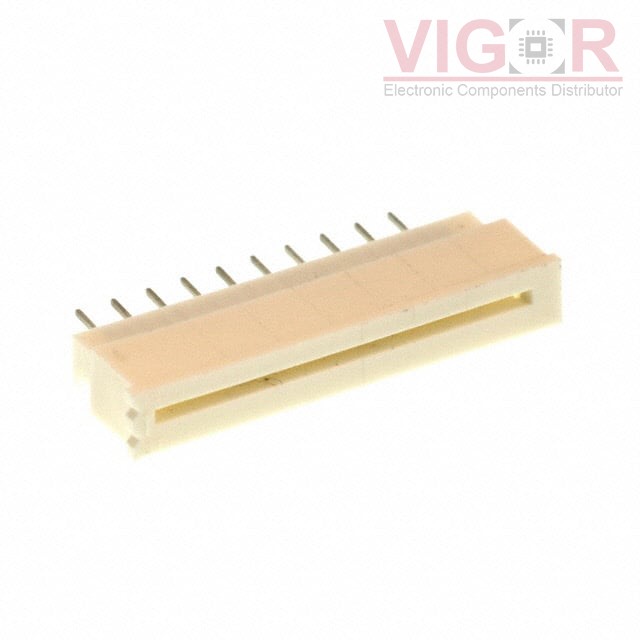

Image is for reference,
please contact us to get the real picture

Part No :

0039532205

Manufacturer
Woodhead - Molex
Description
CONN FFC VERT 20POS 1.25MM PCB
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
0039532205 PDF
Availability
1582 pieces
Unit Price
$1.62000

Current price of 0039532205 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0039532205 Specifications
Type Description
Series:5597
Package:Tray
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:20
Pitch:0.049" (1.25mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.295" (7.50mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polybutylene Terephthalate (PBT), Polyester
Actuator Material:Polybutylene Terephthalate (PBT), Polyester
Features:Zero Insertion Force (ZIF)
Voltage Rating:200V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
