5035662700

5035662700

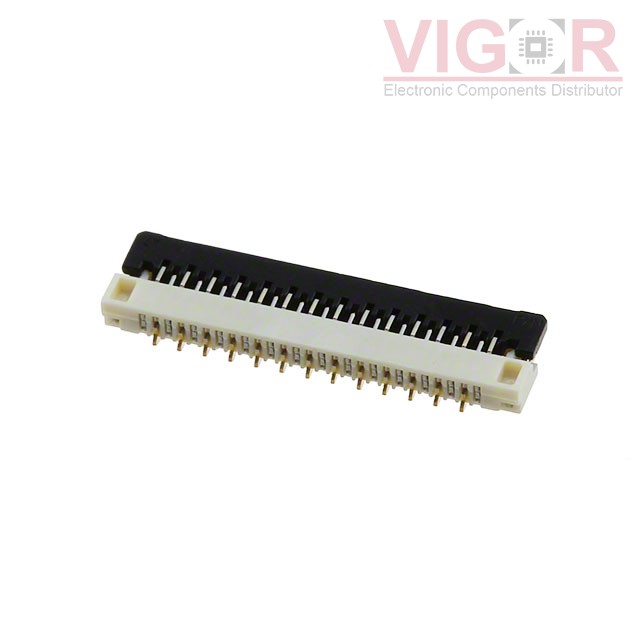

Image is for reference,
please contact us to get the real picture

Part No :

5035662700

Manufacturer
Woodhead - Molex
Description
CONN FPC BOTTOM 27POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
5035662700 PDF
Availability
592 pieces
Unit Price
$2.05000

Current price of 5035662700 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5035662700 Specifications
Type Description
Series:Easy-On 503566
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:27
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.037" (0.95mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
