0522072860

0522072860

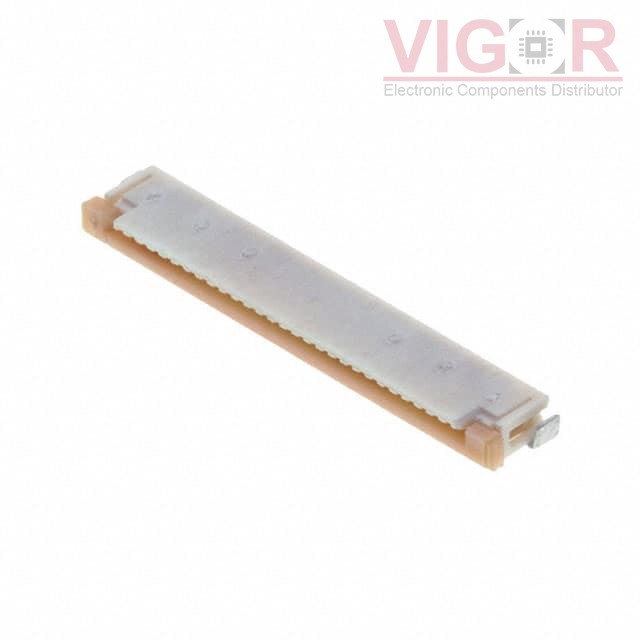

Image is for reference,
please contact us to get the real picture

Part No :

0522072860

Manufacturer
Woodhead - Molex
Description
CONN FFC FPC TOP 28POS 1MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
0522072860 PDF
Availability
1000 pieces
Unit Price
$2.66000

Current price of 0522072860 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0522072860 Specifications
Type Description
Series:52207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:28
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
