5033202560

5033202560

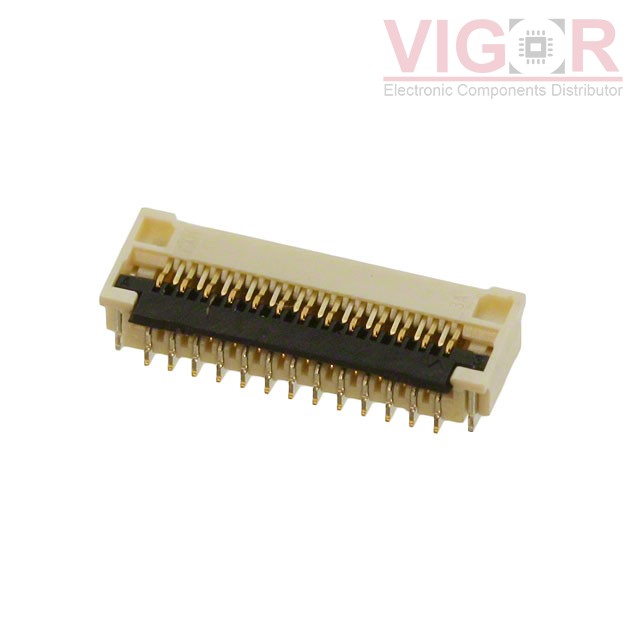

Image is for reference,
please contact us to get the real picture

Part No :

5033202560

Manufacturer
Woodhead - Molex
Description
CONN FPC BOTTOM 25POS 0.25MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
5033202560 PDF
Availability
0 pieces
Unit Price
$0.94952

Current price of 5033202560 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5033202560 Specifications
Type Description
Series:Easy-On 503320
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:25
Pitch:0.010" (0.25mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:-
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material:Polyamide (PA), Nylon, Glass Filled
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0, UL94 HB
