686115183422

686115183422

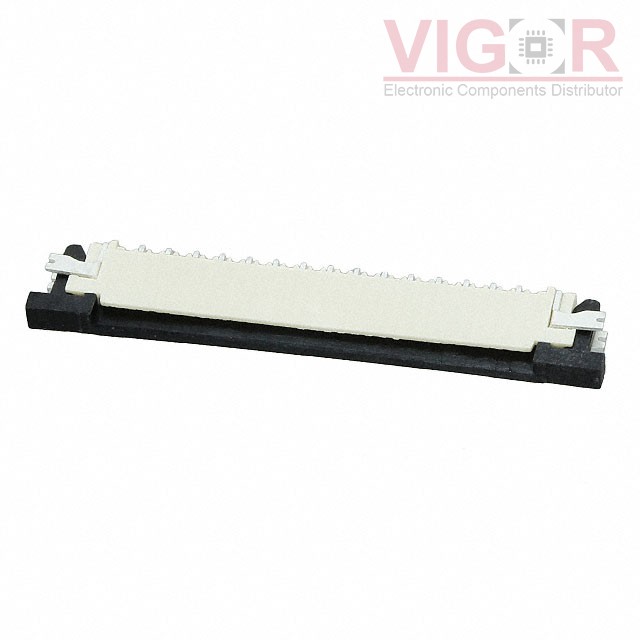

Image is for reference,
please contact us to get the real picture

Part No :

686115183422

Manufacturer
Würth Elektronik Midcom
Description
CONN FFC TOP 15POS 1MM SMD R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
686115183422 PDF
Availability
699 pieces
Unit Price
$1.65000

Current price of 686115183422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

686115183422 Specifications
Type Description
Series:WR-FPC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:15
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.047" (1.20mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyamide (PA6T), Nylon 6T
Features:Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-25°C ~ 85°C
Material Flammability Rating:UL94 V-0
