0526102034

0526102034

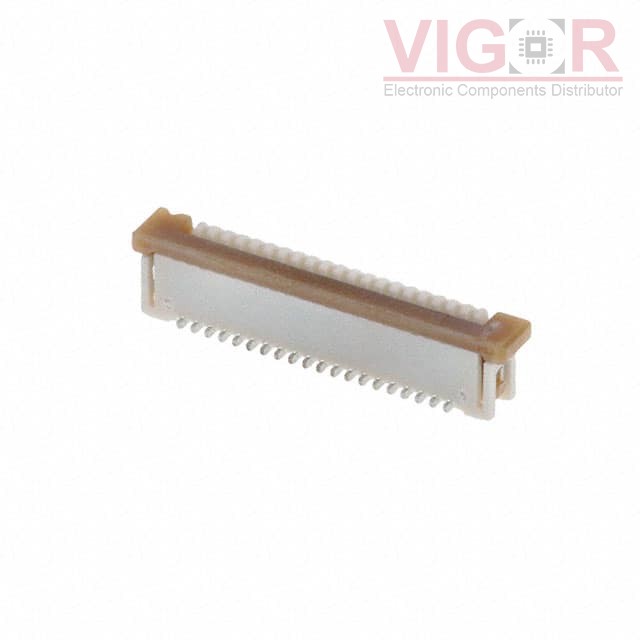

Image is for reference,
please contact us to get the real picture

Part No :

0526102034

Manufacturer
Woodhead - Molex
Description
CONN FPC VERT 20POS 1.00MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
0526102034 PDF
Availability
2936 pieces
Unit Price
$2.64000

Current price of 0526102034 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0526102034 Specifications
Type Description
Series:Easy-On 52610
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:20
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.226" (5.74mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-
Material Flammability Rating:UL94 V-0
