SFW22S-2STE1LF

SFW22S-2STE1LF

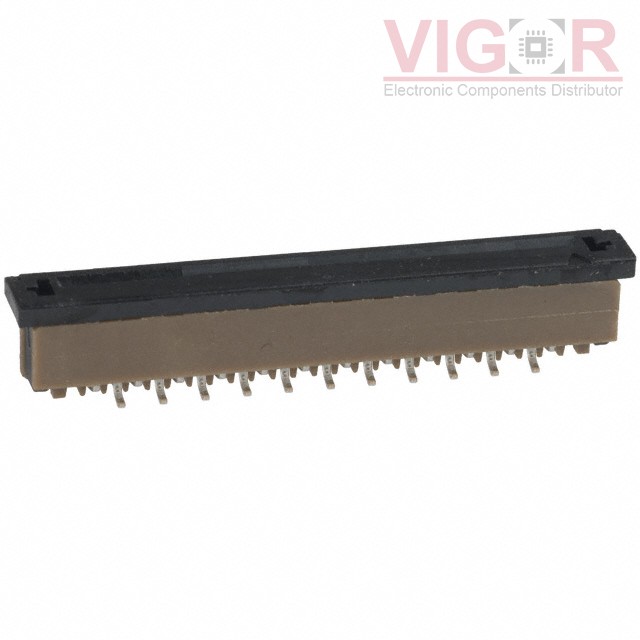

Image is for reference,
please contact us to get the real picture

Part No :

SFW22S-2STE1LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN FFC FPC VERT 22POS 1MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
SFW22S-2STE1LF PDF
Availability
924 pieces
Unit Price
$0.72000

Current price of SFW22S-2STE1LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SFW22S-2STE1LF Specifications
Type Description
Series:SFW
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:22
Pitch:0.039" (1.00mm)
Termination:IDC
FFC, FCB Thickness:0.33mm
Height Above Board:0.209" (5.30mm)
Locking Feature:-
Cable End Type:-
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Thermoplastic, Glass Filled
Actuator Material:Thermoplastic, Glass Filled
Features:Zero Insertion Force (ZIF)
Voltage Rating:100V
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
