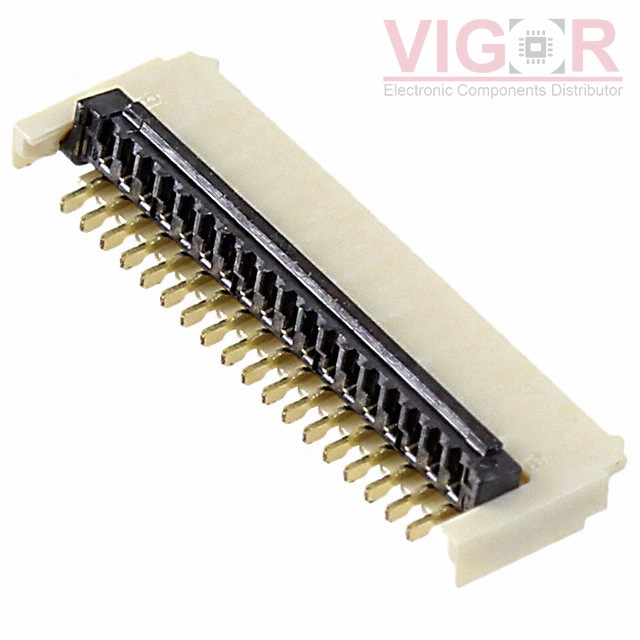

XF2U-1815-3A

XF2U-1815-3A

Image is for reference,
please contact us to get the real picture

Part No :

XF2U-1815-3A

Manufacturer
Omron Electronics Components
Description
CONN FPC 18POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 06 - Jul 10 2025
DataSheet
XF2U-1815-3A PDF
Availability
107 pieces
Unit Price
$1.11000

Current price of XF2U-1815-3A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XF2U-1815-3A Specifications
Type Description
Series:XF2U
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:18
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.035" (0.88mm)
Locking Feature:Rotary Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:-
Voltage Rating:50V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
