XF3M(1)-0715-1B-R100

XF3M(1)-0715-1B-R100

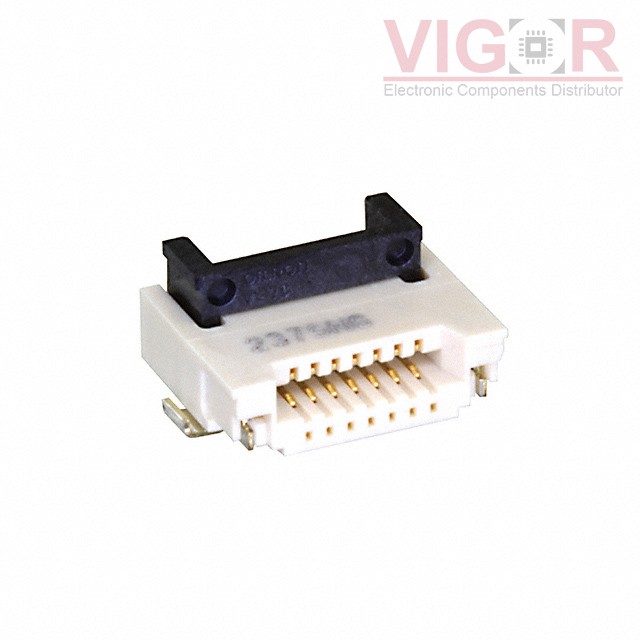

Image is for reference,
please contact us to get the real picture

Part No :

XF3M(1)-0715-1B-R100

Manufacturer
Omron Electronics Components
Description
CONN FPC 7POS 1MM PITCH SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
XF3M(1)-0715-1B-R100 PDF
Availability
0 pieces
Unit Price
$1.72520

Current price of XF3M(1)-0715-1B-R100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XF3M(1)-0715-1B-R100 Specifications
Type Description
Series:XF3M
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:7
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Rotary Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
