0528520470

0528520470

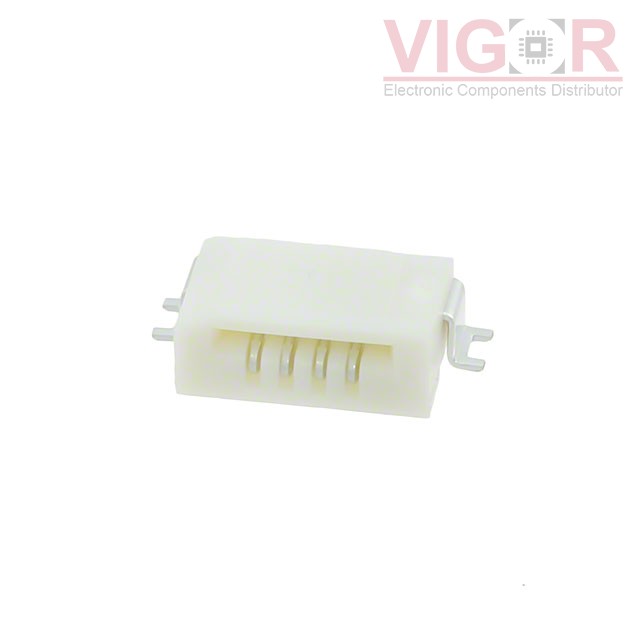

Image is for reference,
please contact us to get the real picture

Part No :

0528520470

Manufacturer
Woodhead - Molex
Description
CONN FFC BOTTOM 4POS 1.00MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
0528520470 PDF
Availability
17786 pieces
Unit Price
$0.74000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0528520470 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

0528520470 Specifications
Type Description
Series:Easy-On 52852
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:4
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.122" (3.10mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyphenylene Sulfide (PPS)
Actuator Material:-
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-20°C ~ 80°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 66226-007LF

66226-007LF

CONN FFC HEADER 7POS 2.54MM

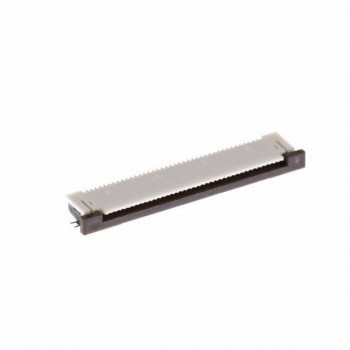

HOT 0541044031
