FH23-27S-0.3SHAW(05)

FH23-27S-0.3SHAW(05)

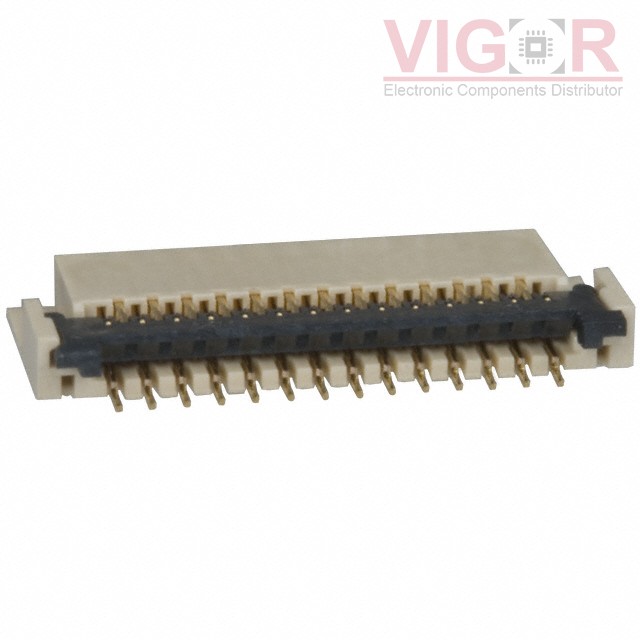

Image is for reference,
please contact us to get the real picture

Part No :

FH23-27S-0.3SHAW(05)

Manufacturer
Hirose
Description
CONN FPC BOTTOM 27POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
FH23-27S-0.3SHAW(05) PDF
Availability
0 pieces
Unit Price
$1.00800

Current price of FH23-27S-0.3SHAW(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH23-27S-0.3SHAW(05) Specifications
Type Description
Series:FH23
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:27
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.049" (1.25mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:Low Insertion Force (LIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 4-1734592-5

4-1734592-5

CONN FPC BOTTOM 45POS 0.50MM R/A
HOT TF31-30S-0.5SH(800)

TF31-30S-0.5SH(800)

CONN FFC 30POS 0.50MM SMD

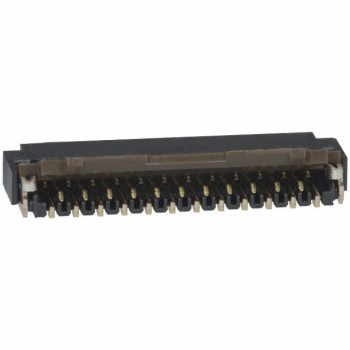

HOT FH26W-23S-0.3SHW(60)
