FH23-25S-0.3SHW(10)

FH23-25S-0.3SHW(10)

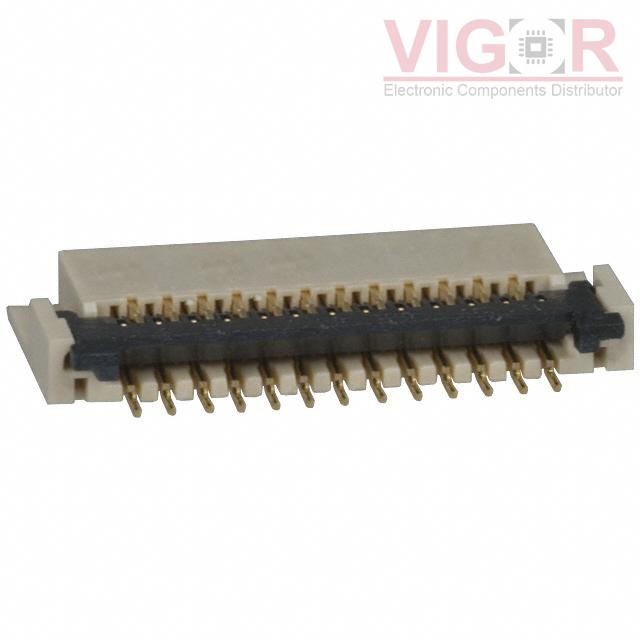

Image is for reference,
please contact us to get the real picture

Part No :

FH23-25S-0.3SHW(10)

Manufacturer
Hirose
Description
CONN FPC BOTTOM 25POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
FH23-25S-0.3SHW(10) PDF
Availability
0 pieces
Unit Price
$1.03600

Current price of FH23-25S-0.3SHW(10) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH23-25S-0.3SHW(10) Specifications
Type Description
Series:FH23
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:25
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.049" (1.25mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:Low Insertion Force (LIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
