3-2328724-9

3-2328724-9

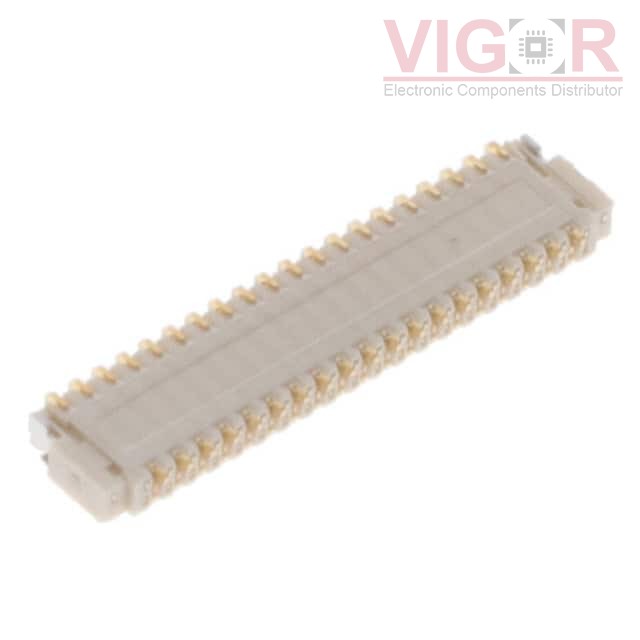

Image is for reference,
please contact us to get the real picture

Part No :

3-2328724-9

Manufacturer
TE Connectivity AMP Connectors
Description
0.3MM PITCH FRONT FLIP FPC, 39PO
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 08 - Aug 12 2025
DataSheet
3-2328724-9 PDF
Availability
18016 pieces
Unit Price
$0.44000

Current price of 3-2328724-9 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3-2328724-9 Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:39
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Thermoplastic
Actuator Material:Thermoplastic
Features:-
Voltage Rating:30V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
