09300160431

09300160431

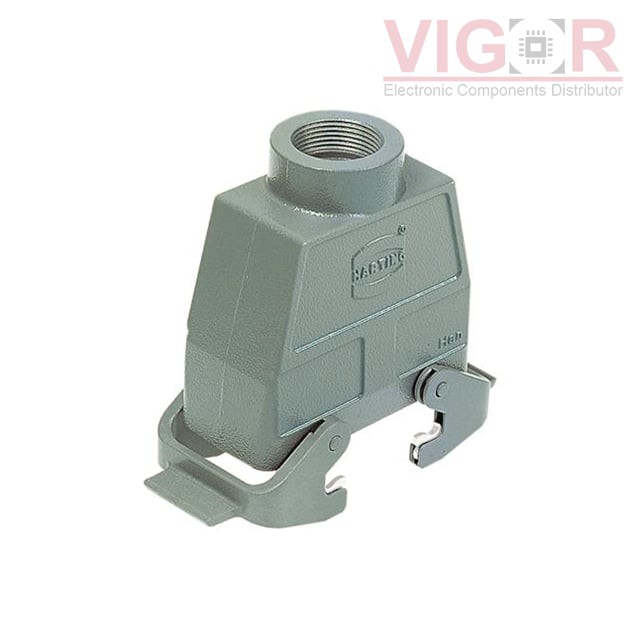

Image is for reference,
please contact us to get the real picture

Part No :

09300160431

Manufacturer
HARTING
Description
CONN HOOD TOP ENTRY SZ16B PG29
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 27 - Aug 31 2025
DataSheet
09300160431 PDF
Availability
4 pieces
Unit Price
$47.00000

Current price of 09300160431 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09300160431 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Top Entry
Size:16B
Lock Location:Locking Clip (2) on Hood
Thread Size:PG29
Size / Dimension:3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
