09200030420

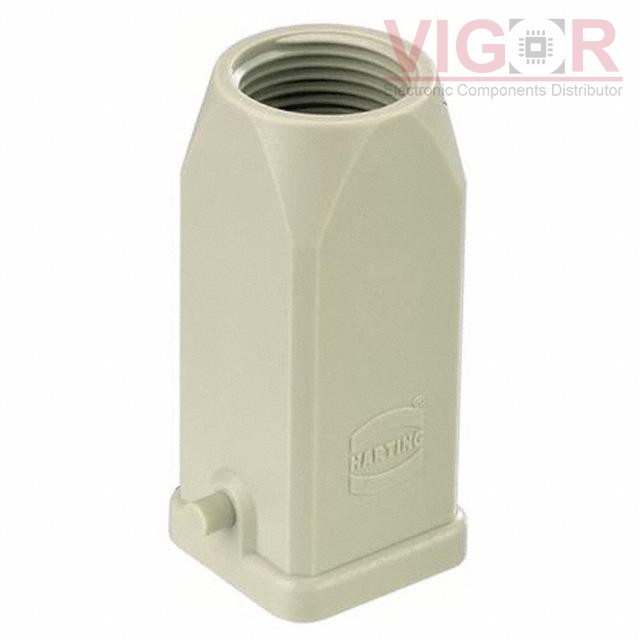

Image is for reference,
please contact us to get the real picture

Part No :

09200030420

Manufacturer
HARTING
Description
CONN HOOD TOP ENTRY SZ3A PG11
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 22 - Aug 26 2025
DataSheet
09200030420 PDF
Availability
45 pieces
Unit Price
$5.60000

Current price of 09200030420 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Top Entry
Size:3A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG11
Size / Dimension:1.043" L x 1.043" W x 2.362" H (26.50mm x 26.50mm x 60.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP44
Housing Material:Thermoplastic
Housing Finish:-
Operating Temperature:-40°C ~ 125°C
