09200100296

09200100296

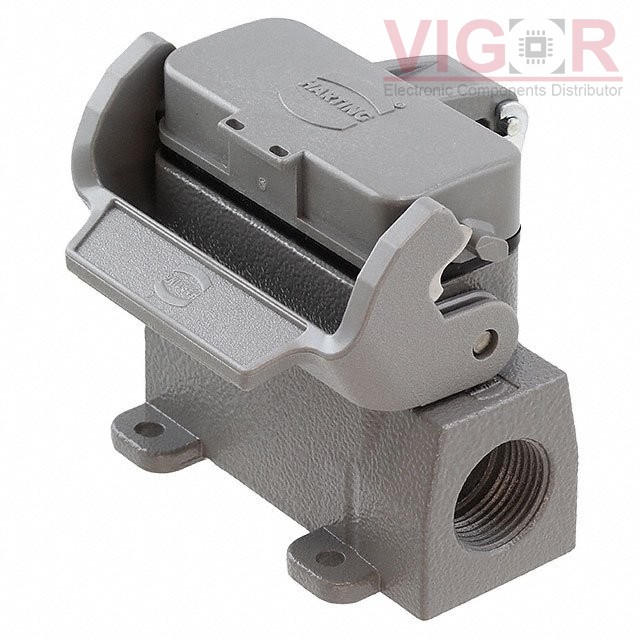

Image is for reference,
please contact us to get the real picture

Part No :

09200100296

Manufacturer
HARTING
Description
CONN BASE SIDE ENTRY SZ10A PG16
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
09200100296 PDF
Availability
6 pieces
Unit Price
$74.73000

Current price of 09200100296 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200100296 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Base - Box Mount
Style:Side Entry
Size:10A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG16
Size / Dimension:3.461" L x 1.969" W x 2.047" H (87.90mm x 50.00mm x 52.00mm)
Housing Color:Gray
Features:Cover, Feed Through
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
