09400100301

09400100301

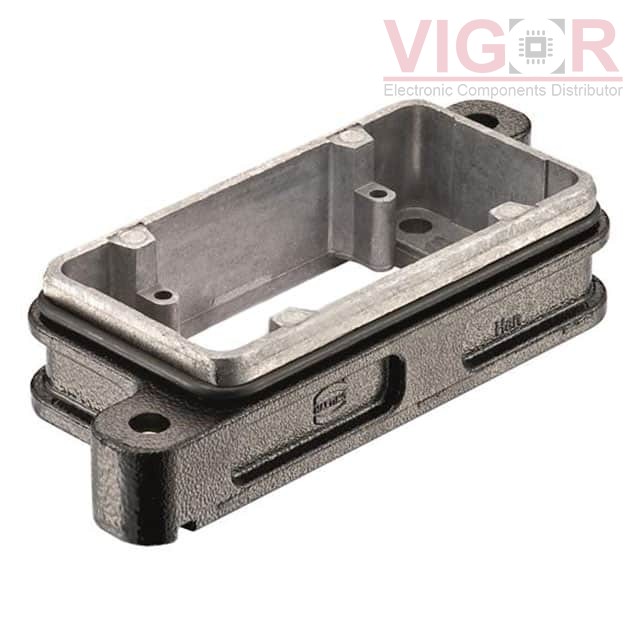

Image is for reference,
please contact us to get the real picture

Part No :

09400100301

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ10B
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 24 - Jul 28 2025
DataSheet
09400100301 PDF
Availability
5 pieces
Unit Price
$63.89000

Current price of 09400100301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09400100301 Specifications
Type Description
Series:Han® HPR
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:10B
Lock Location:Screw Locks on Hood
Thread Size:-
Size / Dimension:5.709" L x 2.283" W x 1.138" H (145.00mm x 58.00mm x 28.90mm)
Housing Color:Black
Features:-
Ingress Protection:IP65/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
