09200160301

09200160301

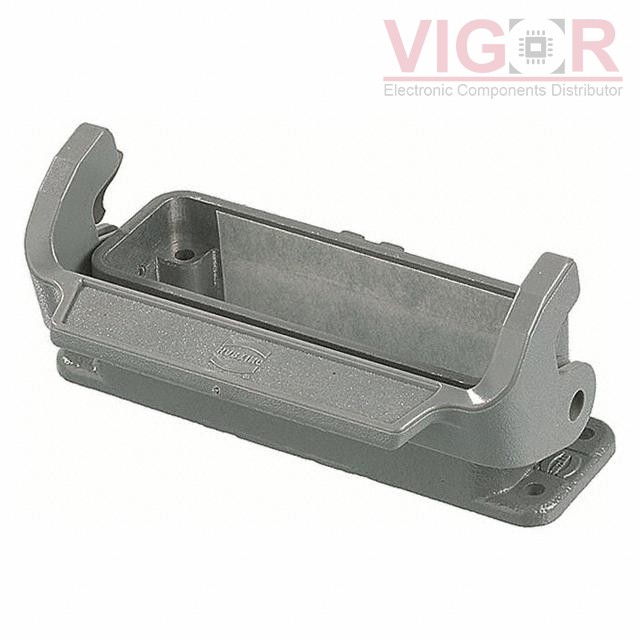

Image is for reference,
please contact us to get the real picture

Part No :

09200160301

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ16A
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
09200160301 PDF
Availability
89 pieces
Unit Price
$24.08000

Current price of 09200160301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200160301 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:16A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:3.780" L x 1.142" W x 1.024" H (96.00mm x 29.00mm x 26.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
