09200100321

09200100321

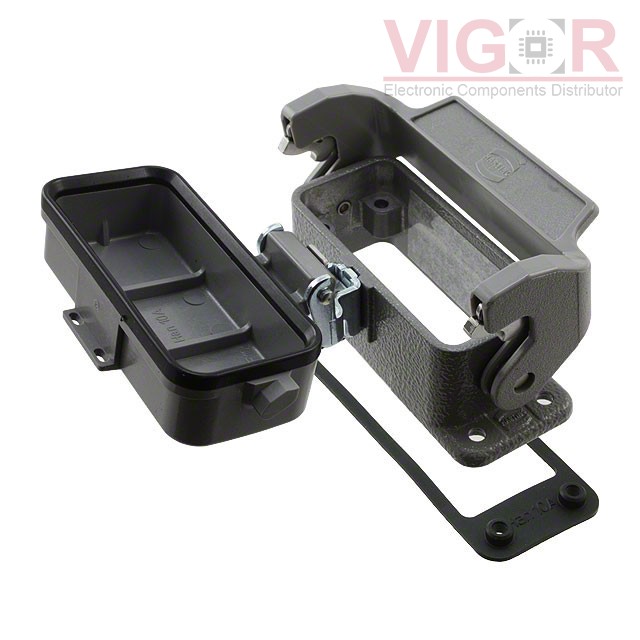

Image is for reference,
please contact us to get the real picture

Part No :

09200100321

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ10A
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
09200100321 PDF
Availability
0 pieces
Unit Price
$26.23000

Current price of 09200100321 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200100321 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:10A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:3.189" L x 1.161" W x 1.024" H (81.00mm x 29.50mm x 26.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
