JX20-0254NL

JX20-0254NL

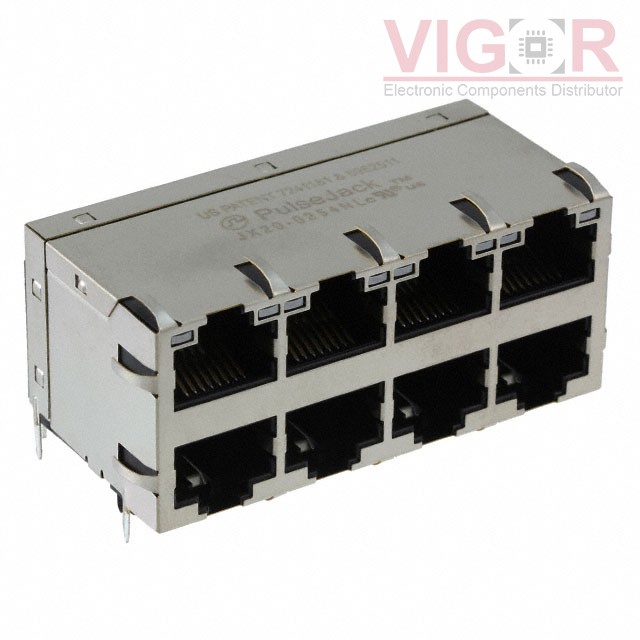

Image is for reference,
please contact us to get the real picture

Part No :

JX20-0254NL

Manufacturer
PulseLarsen Antenna
Description
CONN JACK 8PORT 100 BASE-TX PCB
Catalog
Modular Connectors - Jacks With Magnetics
Shipped from
HK warehouse
Expected Shipping Date
Jul 10 - Jul 14 2025
DataSheet
JX20-0254NL PDF
Availability
0 pieces
Unit Price
$35.98396

Current price of JX20-0254NL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JX20-0254NL Specifications
Type Description
Series:PULSEJACK™ JX2
Package:Tray
Part Status:Active
Connector Type:RJ45
Number of Ports:8
Number of Rows:2
Applications:10/100 Base-TX, AutoMDIX
Mounting Type:Through Hole
Orientation:90° Angle (Right)
Termination:Solder
Height Above Board:1.005" (25.53mm)
LED Color:Green, Orange - Green, Orange
Number of Cores per Jack:4
Shielding:Shielded, EMI Finger
Features:Board Guide
Tab Direction:Up and Down
Contact Material:Phosphor Bronze
Contact Finish:Gold
Operating Temperature:-40°C ~ 85°C
