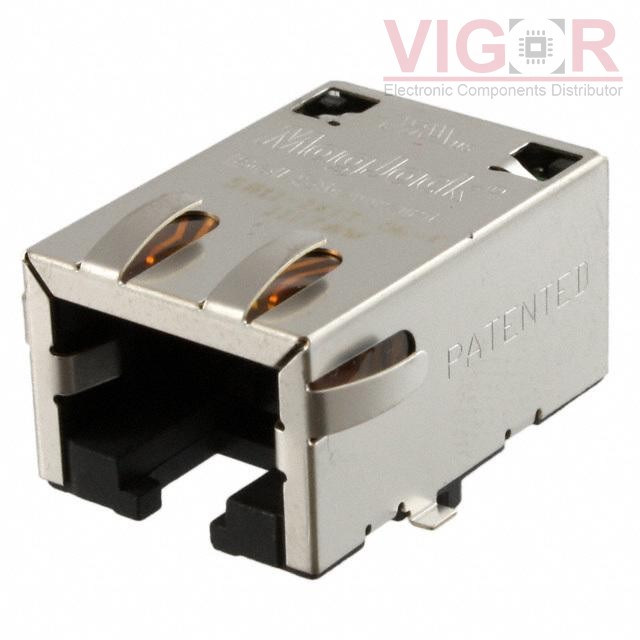

S811-1X1T-06-F

Image is for reference,
please contact us to get the real picture

Part No :: S811-1X1T-06-F

Manufacturer: Bel Fuse, Inc.

Description: CONN JACK 1PORT 100 BASE-T SMD

Catalog: Modular Connectors - Jacks With Magnetics

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: S811-1X1T-06-F PDF

Availability: 0 pieces

Unit Price: ~~$4.68000~~

Current price of S811-1X1T-06-F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S811-1X1T-06-F Specifications

Type	Description
Series:	MagJack®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	RJ45
Number of Ports:	1
Number of Rows:	1
Applications:	10/100 Base-T, AutoMDIX
Mounting Type:	Surface Mount
Orientation:	90° Angle (Right)
Termination:	Solder
Height Above Board:	0.502" (12.75mm)
LED Color:	Does Not Contain LED
Number of Cores per Jack:	4
Shielding:	Shielded, EMI Finger
Features:	Board Guide, Solder Retention
Tab Direction:	Down
Contact Material:	Copper Alloy
Contact Finish:	Gold
Operating Temperature:	0°C ~ 70°C
