Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 4304.5082 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | FKID |
Package: | Bulk |
Part Status: | Active |
Connector Style: | IEC 320-C14 |
Connector Type: | Receptacle, Male Blades - Module |
Current - IEC: | 2A |
Voltage - IEC: | 250VAC |
Current - UL: | 2A |
Voltage - UL: | 125VAC |
Filter Type: | Filtered (EMI, RFI) - Commercial, Medical |
Accomodates a Fuse: | Yes (Fuse Not Included) |
Number of Positions: | 3 |
Mounting Type: | Panel Mount, Flange |
Termination: | Quick Connect - 0.250" (6.3mm) |
Switch Features: | Switch On-Off |
Features: | Shielded |
Fuse Holder, Drawer: | Fuse Holder |
Panel Cutout Dimensions: | Rectangular - 29.50mm x 61.00mm |
Panel Thickness: | - |
Material Flammability Rating: | UL94 V-0 |
Ingress Protection: | IP40 |
Approval Agency: | cULus, ENEC |

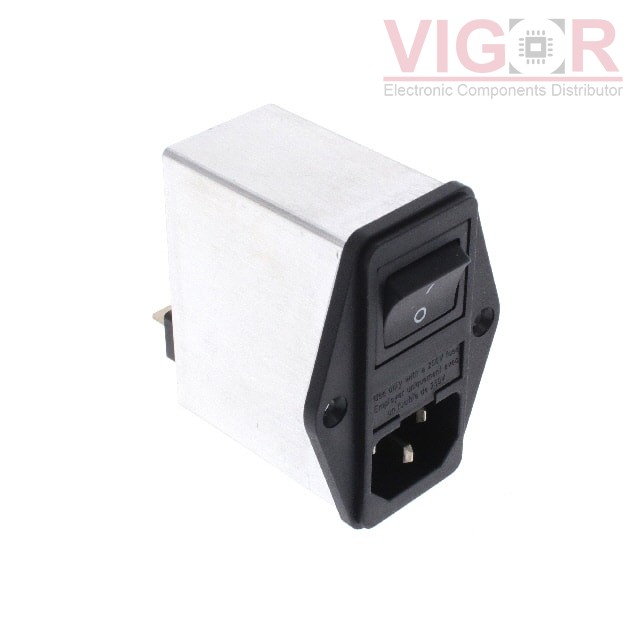

PWR ENT MOD RCPT IEC320-C14 PNL
