TX25-40P-6ST-N1E

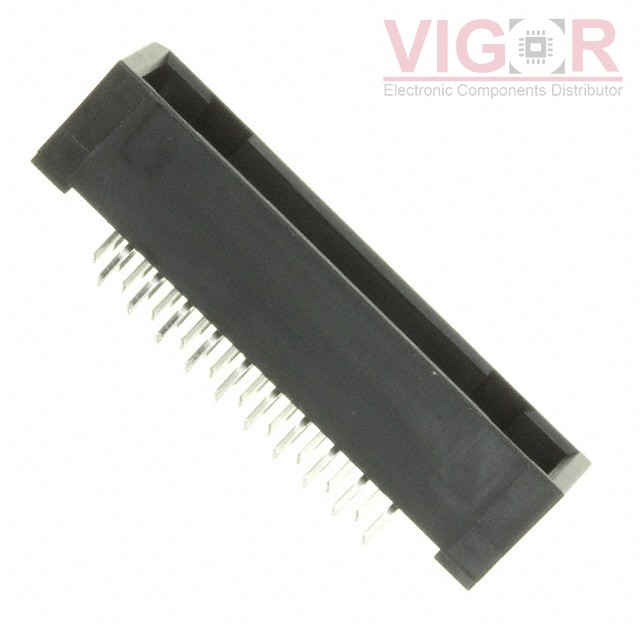

Image is for reference,
please contact us to get the real picture

Part No :: TX25-40P-6ST-N1E

Manufacturer: JAE Electronics

Description: CONN PLUG 40POS VERT GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: TX25-40P-6ST-N1E PDF

Availability: 0 pieces

Unit Price: ~~$0.86700~~

Current price of TX25-40P-6ST-N1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX25-40P-6ST-N1E Specifications

Type	Description
Series:	TX25
Package:	Tray
Part Status:	Active
Connector Type:	Plug, Center Strip Contacts
Number of Positions:	40
Pitch:	0.050" (1.27mm)
Number of Rows:	2
Mounting Type:	Through Hole
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	12mm, 16mm, 18mm
Height Above Board:	0.362" (9.20mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
