SEAF-40-01-L-04-2-RA-GP-K-TR

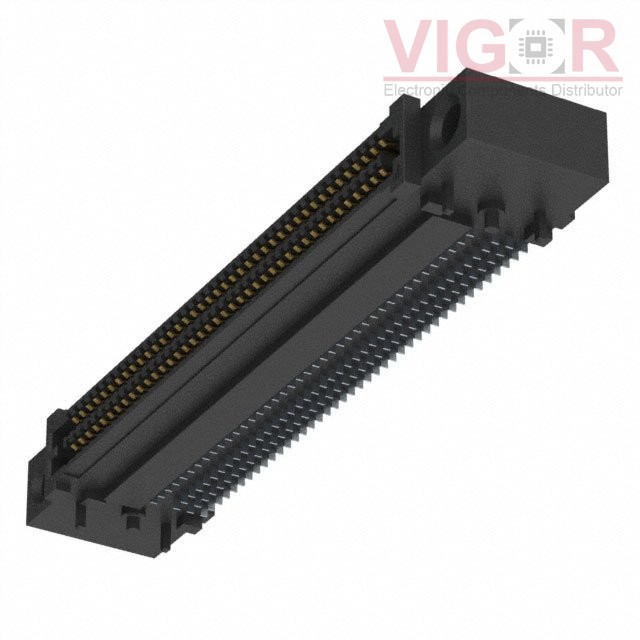

Image is for reference,
please contact us to get the real picture

Part No :: SEAF-40-01-L-04-2-RA-GP-K-TR

Manufacturer: Samtec, Inc.

Description: CONN HD ARRAY RCPT 160P R/A SMD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 28 - Aug 01 2025

DataSheet: SEAF-40-01-L-04-2-RA-GP-K-TR PDF

Availability: 0 pieces

Unit Price: ~~$16.46096~~

Current price of SEAF-40-01-L-04-2-RA-GP-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SEAF-40-01-L-04-2-RA-GP-K-TR Specifications

Type	Description
Series:	SEARAY™ SEAF
Package:	Tape & Reel (TR)
Part Status:	Active
Connector Type:	High Density Array, Female
Number of Positions:	160
Pitch:	0.050" (1.27mm)
Number of Rows:	4
Mounting Type:	Surface Mount, Right Angle
Features:	Board Guide, Mating Flange, Pick and Place
Contact Finish:	Gold
Contact Finish Thickness:	10.0µin (0.25µm)
Mated Stacking Heights:	-
Height Above Board:	0.311" (7.90mm)

Please confirm the specifications of the products when ordering.
