FX20-120P-0.5SV20

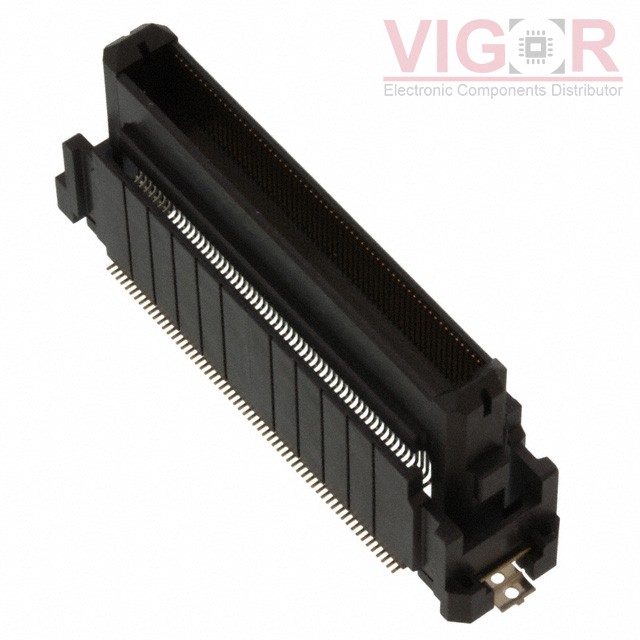

Image is for reference,
please contact us to get the real picture

Part No :: FX20-120P-0.5SV20

Manufacturer: Hirose

Description: CONN HDR 120POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: FX20-120P-0.5SV20 PDF

Availability: 0 pieces

Unit Price: ~~$6.98000~~

Current price of FX20-120P-0.5SV20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FX20-120P-0.5SV20 Specifications

Type	Description
Series:	FunctionMax™ FX20
Package:	Tray
Part Status:	Active
Connector Type:	Header, Outer Shroud Contacts
Number of Positions:	120
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	3.94µin (0.10µm)
Mated Stacking Heights:	20mm, 30mm
Height Above Board:	0.717" (18.21mm)
