BTH-120-02-F-D-TR

BTH-120-02-F-D-TR

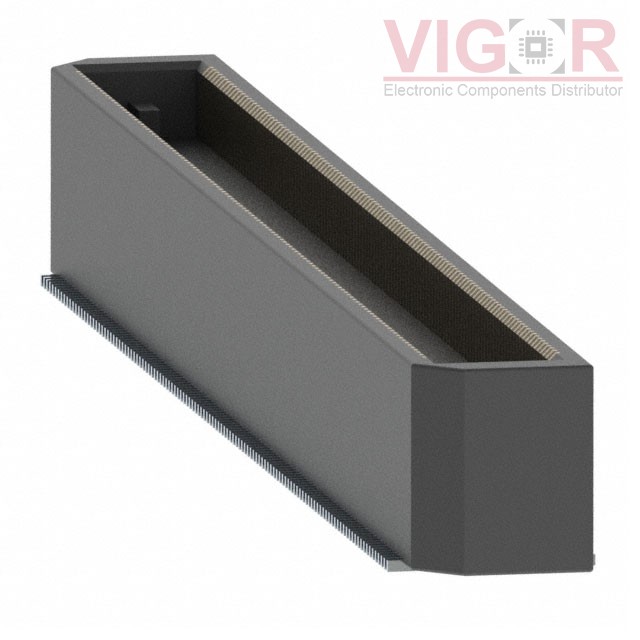

Image is for reference,
please contact us to get the real picture

Part No :

BTH-120-02-F-D-TR

Manufacturer
Samtec, Inc.
Description
CONN HDR 240POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
BTH-120-02-F-D-TR PDF
Availability
0 pieces
Unit Price
$8.39107

Current price of BTH-120-02-F-D-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTH-120-02-F-D-TR Specifications
Type Description
Series:BTH
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header, Outer Shroud Contacts
Number of Positions:240
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:-
Contact Finish:Gold
Contact Finish Thickness:3.00µin (0.076µm)
Mated Stacking Heights:8mm
Height Above Board:0.286" (7.26mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0717410002

0717410002

CONN PLUG 84POS SMD GOLD

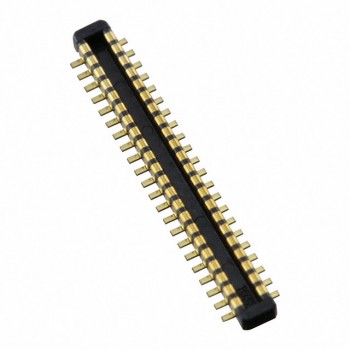

HOT BM14B(0.8)-40DP-0.4V(53)

BM14B(0.8)-40DP-0.4V(53)

CONN HDR 40POS SMD GOLD

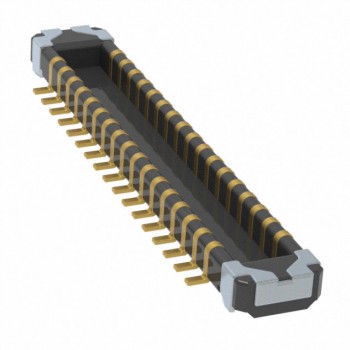

HOT BM23FR0.6-34DP-0.35V(895)
