0536271675

0536271675

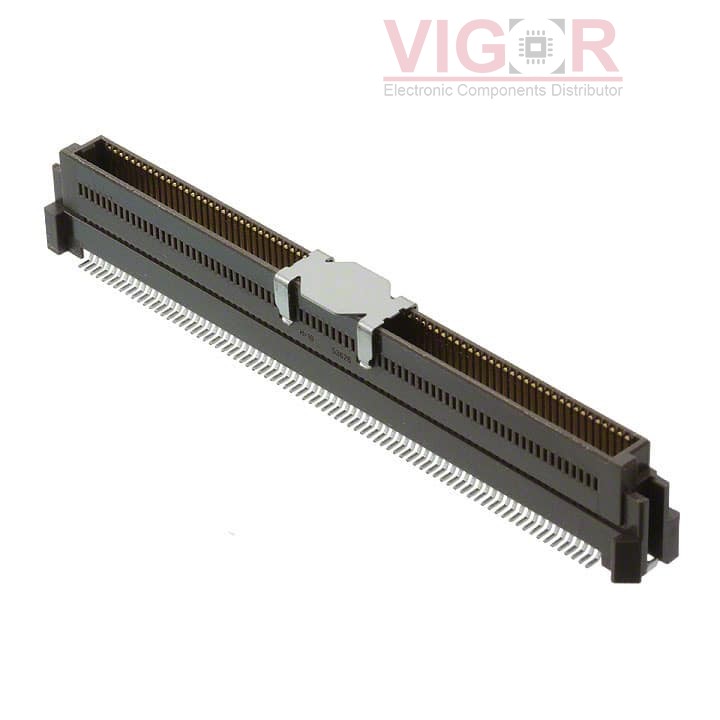

Image is for reference,
please contact us to get the real picture

Part No :

0536271675

Manufacturer
Woodhead - Molex
Description
CONN PLUG 160POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Aug 06 - Aug 10 2025
DataSheet
0536271675 PDF
Availability
0 pieces
Unit Price
$11.39000

Current price of 0536271675 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0536271675 Specifications
Type Description
Series:SlimStack 53627
Package:Tube
Part Status:Obsolete
Connector Type:Plug, Outer Shroud Contacts
Number of Positions:160
Pitch:0.025" (0.64mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide, Solder Retention
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:10mm, 16mm
Height Above Board:0.354" (9.00mm)
