AXG7160J7A

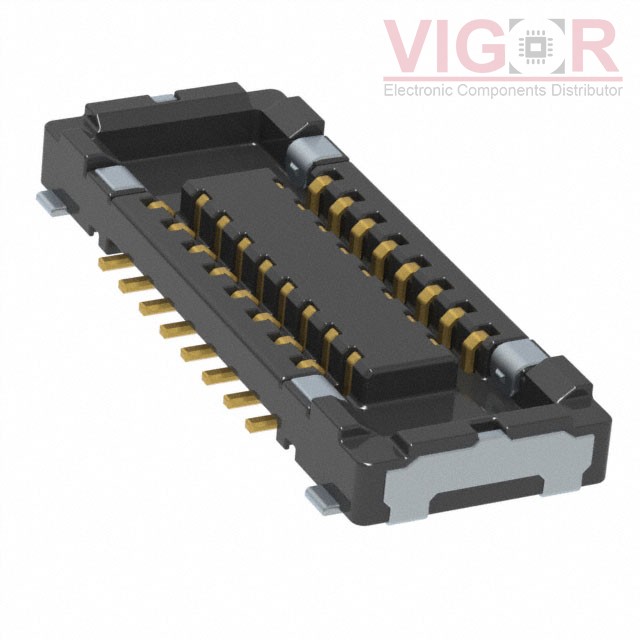

Image is for reference,
please contact us to get the real picture

Part No :: AXG7160J7A

Manufacturer: Panasonic

Description: CONN SOCKET 16POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 25 - Jul 29 2025

DataSheet: AXG7160J7A PDF

Availability: 1713 pieces

Unit Price: ~~$2.73000~~

Current price of AXG7160J7A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AXG7160J7A Specifications

Type	Description
Series:	A35US
Package:	Strip
Part Status:	Obsolete
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	18 (16 + 2 Power)
Pitch:	0.014" (0.35mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	Solder Retention
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	0.6mm
Height Above Board:	0.023" (0.59mm)

Please confirm the specifications of the products when ordering.
