BTH-120-01-F-D-EM2

BTH-120-01-F-D-EM2

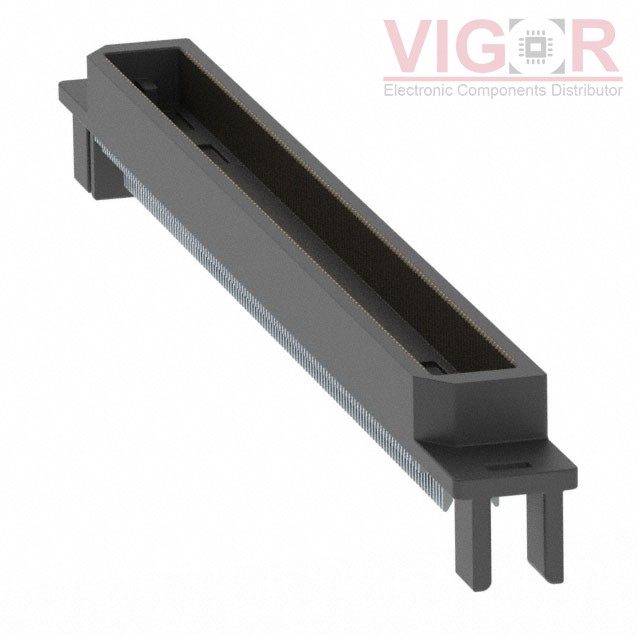

Image is for reference,
please contact us to get the real picture

Part No :

BTH-120-01-F-D-EM2

Manufacturer
Samtec, Inc.
Description
CONN HDR 240POS EDGE MNT GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
BTH-120-01-F-D-EM2 PDF
Availability
0 pieces
Unit Price
$14.93143

Current price of BTH-120-01-F-D-EM2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTH-120-01-F-D-EM2 Specifications
Type Description
Series:BTH
Package:Tube
Part Status:Active
Connector Type:Header, Outer Shroud Contacts
Number of Positions:240
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Board Edge, Straddle Mount
Features:-
Contact Finish:Gold
Contact Finish Thickness:3.00µin (0.076µm)
Mated Stacking Heights:-
Height Above Board:-
