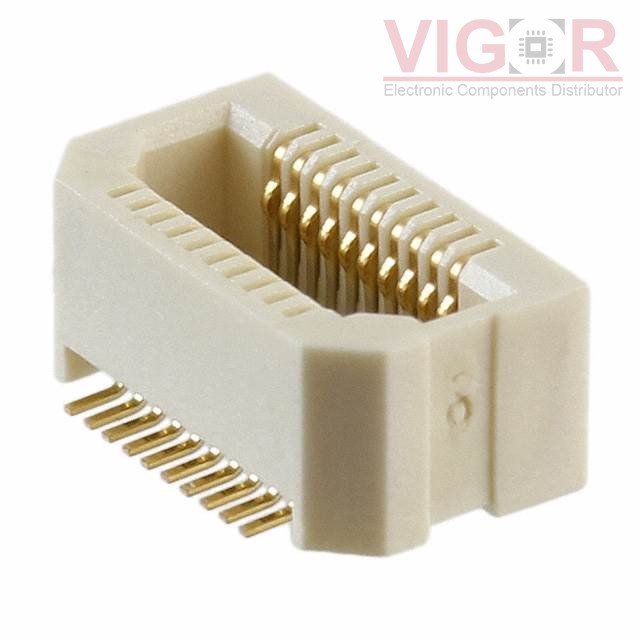

AXK5S20247YG

Image is for reference,
please contact us to get the real picture

Part No :: AXK5S20247YG

Manufacturer: Panasonic

Description: CONN SOCKET 20POS SMD GOLD

Catalog: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: AXK5S20247YG PDF

Availability: 18 pieces

Unit Price: ~~$1.39000~~

Current price of AXK5S20247YG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AXK5S20247YG Specifications

Type	Description
Series:	P5KS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Connector Type:	Socket, Center Strip Contacts
Number of Positions:	20
Pitch:	0.020" (0.50mm)
Number of Rows:	2
Mounting Type:	Surface Mount
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	-
Mated Stacking Heights:	4.5mm, 5.5mm, 6.5mm
Height Above Board:	0.140" (3.55mm)
