LSHM-140-04.0-L-DV-A-N-K-TR

LSHM-140-04.0-L-DV-A-N-K-TR

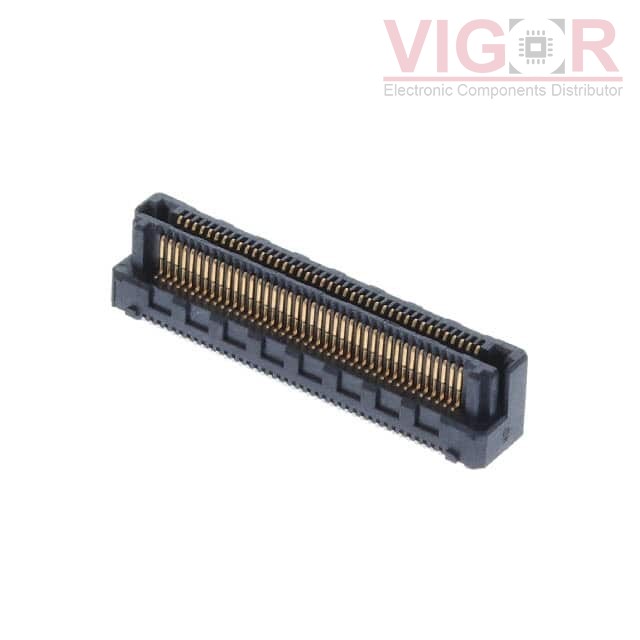

Image is for reference,
please contact us to get the real picture

Part No :

LSHM-140-04.0-L-DV-A-N-K-TR

Manufacturer
Samtec, Inc.
Description
CONN SELF-MATE 80POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2025
DataSheet
LSHM-140-04.0-L-DV-A-N-K-TR PDF
Availability
0 pieces
Unit Price
$8.35000

Current price of LSHM-140-04.0-L-DV-A-N-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LSHM-140-04.0-L-DV-A-N-K-TR Specifications
Type Description
Series:Razor Beam™ LSHM
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Self Mating, Non-Gendered
Number of Positions:80
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide, Pick and Place
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:6.5mm, 7mm, 8mm, 10mm
Height Above Board:0.215" (5.46mm)
