ERM5-040-05.0-L-DV-K-TR

ERM5-040-05.0-L-DV-K-TR

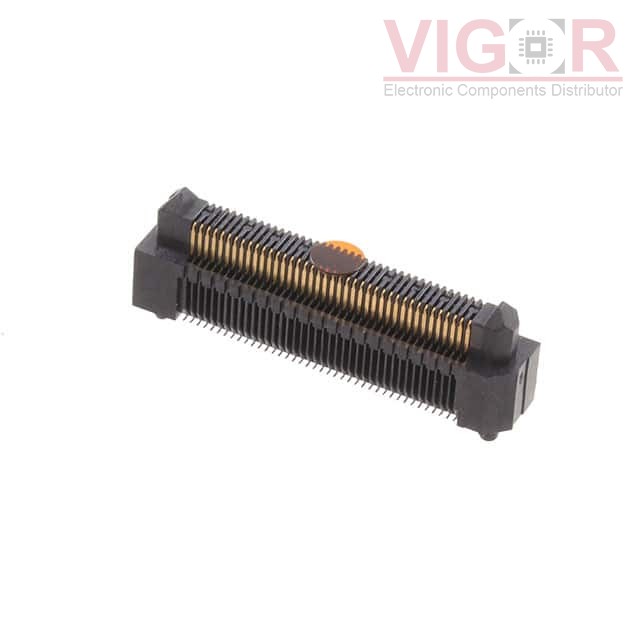

Image is for reference,
please contact us to get the real picture

Part No :

ERM5-040-05.0-L-DV-K-TR

Manufacturer
Samtec, Inc.
Description
CONN HDR 80POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Aug 19 - Aug 23 2025
DataSheet
ERM5-040-05.0-L-DV-K-TR PDF
Availability
0 pieces
Unit Price
$7.39000

Current price of ERM5-040-05.0-L-DV-K-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ERM5-040-05.0-L-DV-K-TR Specifications
Type Description
Series:Edge Rate™ ERM5
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header, Outer Shroud Contacts
Number of Positions:80
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide, Pick and Place
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:10mm, 12mm
Height Above Board:0.309" (7.85mm)
