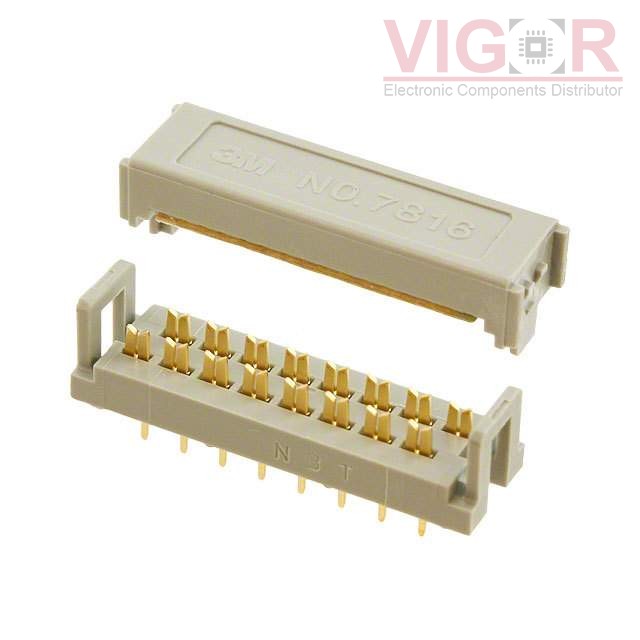

7816-0000PR

7816-0000PR

Image is for reference,
please contact us to get the real picture

Part No :

7816-0000PR

Manufacturer
3M
Description
CONN DIP HDR IDC 16P VERT
Catalog
Rectangular Connectors - Board In, Direct Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
7816-0000PR PDF
Availability
68 pieces
Unit Price
$3.37000

Current price of 7816-0000PR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

7816-0000PR Specifications
Type Description
Series:78XX
Package:Tray
Part Status:Active
Connector Type:Ribbon Cable, DIP Header
Number of Positions:16
Cable Pitch:0.050" (1.27mm)
Board-Side Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Mounting Type:Through Hole
Cable Termination:IDC
Wire Gauge:26 AWG, Stranded; 28 AWG, Solid or Stranded; 30 AWG, Solid
Features:Feed Through
Contact Finish:Gold
Contact Finish Thickness:Flash
Color:Gray
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT CWR-142-20-0203

CWR-142-20-0203

CONN IDC 20POS 28-30AWG VERT
HOT 09181069422

09181069422

CONN DIP HDR IDC 6POS PCB

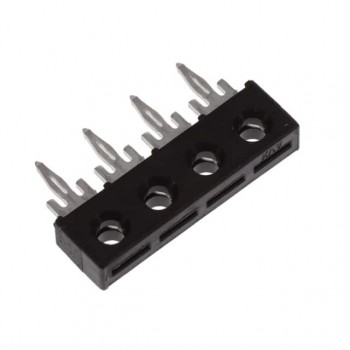

HOT 538702104018096
