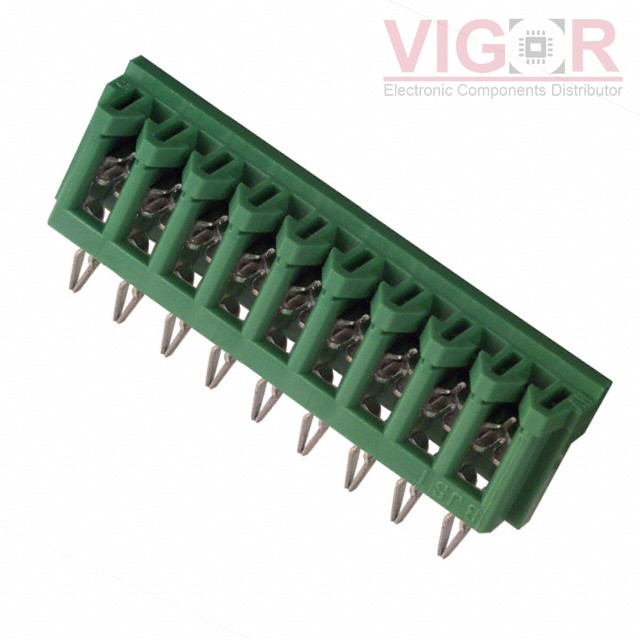

09DB-8M

09DB-8M

Image is for reference,
please contact us to get the real picture

Part No :

09DB-8M

Manufacturer
JST
Description
CONN WIRE IDC 9POS 24-28AWG PCB
Catalog
Rectangular Connectors - Board In, Direct Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Jul 14 - Jul 18 2025
DataSheet
09DB-8M PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 09DB-8M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09DB-8M Specifications
Type Description
Series:DB
Package:Bulk
Part Status:Active
Connector Type:Individual Wires
Number of Positions:9
Cable Pitch:0.098" (2.50mm)
Board-Side Pitch:0.098" (2.50mm)
Number of Rows:1
Row Spacing:-
Mounting Type:Through Hole, Press-Fit
Cable Termination:IDC
Wire Gauge:24-28 AWG, Stranded
Features:Closed End
Contact Finish:Tin-Lead
Contact Finish Thickness:-
Color:Green
