3422-0000

3422-0000

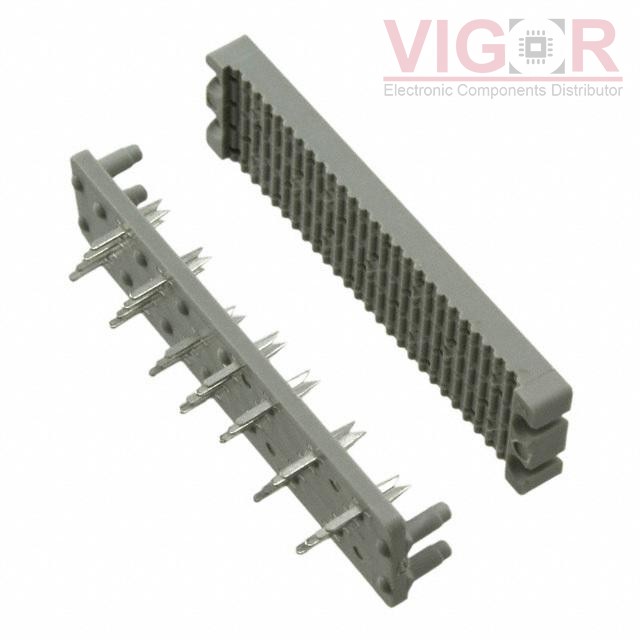

Image is for reference,
please contact us to get the real picture

Part No :

3422-0000

Manufacturer
3M
Description
CONN IDC 20POS 26-28AWG VERT
Catalog
Rectangular Connectors - Board In, Direct Wire to Board
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
3422-0000 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of 3422-0000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3422-0000 Specifications
Type Description
Series:3400
Package:Bulk
Part Status:Obsolete
Connector Type:Ribbon Cable
Number of Positions:20
Cable Pitch:0.050" (1.27mm)
Board-Side Pitch:-
Number of Rows:4
Row Spacing:0.100" (2.54mm)
Mounting Type:Through Hole
Cable Termination:IDC
Wire Gauge:26-28 AWG, Stranded or Solid
Features:Feed Through
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Color:Gray
