HW-07-10-F-D-510-SM-A

HW-07-10-F-D-510-SM-A

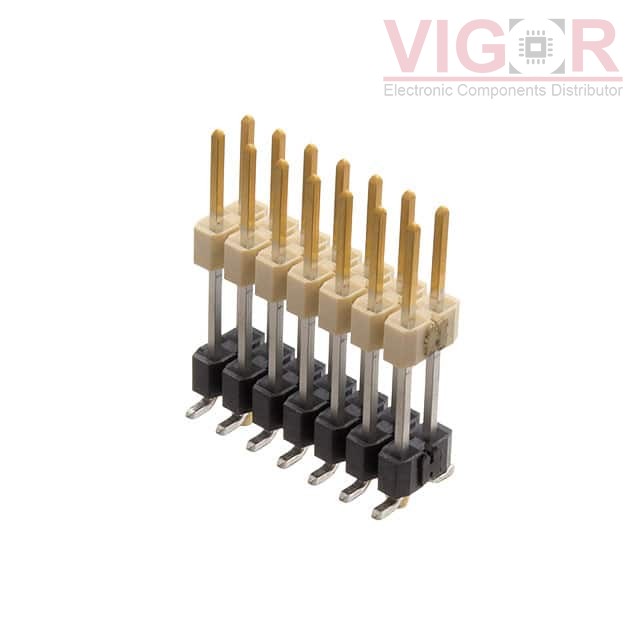

Image is for reference,
please contact us to get the real picture

Part No :

HW-07-10-F-D-510-SM-A

Manufacturer
Samtec, Inc.
Description
CONN HDR 14POS 0.1 STACK SMD
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
HW-07-10-F-D-510-SM-A PDF
Availability
0 pieces
Unit Price
$2.59000

Current price of HW-07-10-F-D-510-SM-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HW-07-10-F-D-510-SM-A Specifications
Type Description
Series:Flex Stack, HW
Package:Tube
Part Status:Active
Number of Positions:14
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:0.765" (19.431mm)
Length - Post (Mating):0.255" (6.477mm)
Length - Stack Height:0.510" (12.954mm)
Length - Tail:-
Mounting Type:Surface Mount
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):3.00µin (0.076µm)
Color:Black
