TW-10-08-L-D-510-105

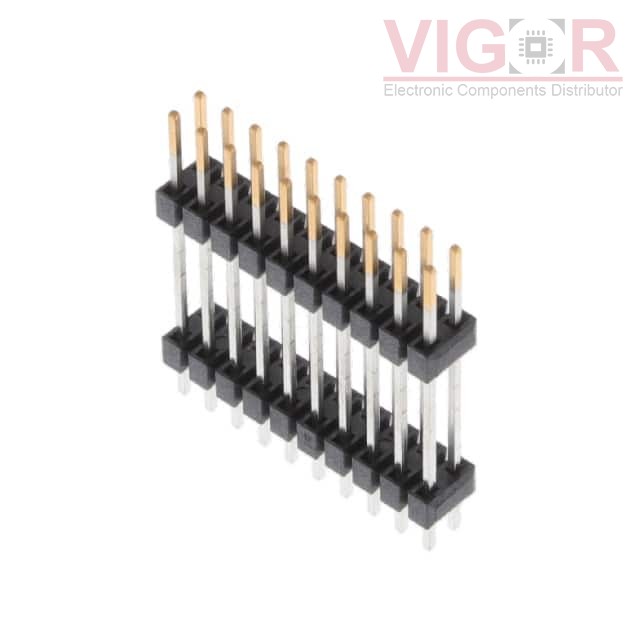

Image is for reference,
please contact us to get the real picture

Part No :: TW-10-08-L-D-510-105

Manufacturer: Samtec, Inc.

Description: CONN BRD STACK 2MM 20POS

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: TW-10-08-L-D-510-105 PDF

Availability: 55 pieces

Unit Price: ~~$3.59000~~

Current price of TW-10-08-L-D-510-105 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TW-10-08-L-D-510-105 Specifications

Type	Description
Series:	TW
Package:	Bulk
Part Status:	Active
Number of Positions:	20
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing:	0.079" (2.00mm)
Length - Overall Pin:	0.831" (21.107mm)
Length - Post (Mating):	0.216" (5.486mm)
Length - Stack Height:	0.510" (12.954mm)
Length - Tail:	0.105" (2.667mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black

Please confirm the specifications of the products when ordering.
