FW-15-05-F-D-505-075-ES-A

FW-15-05-F-D-505-075-ES-A

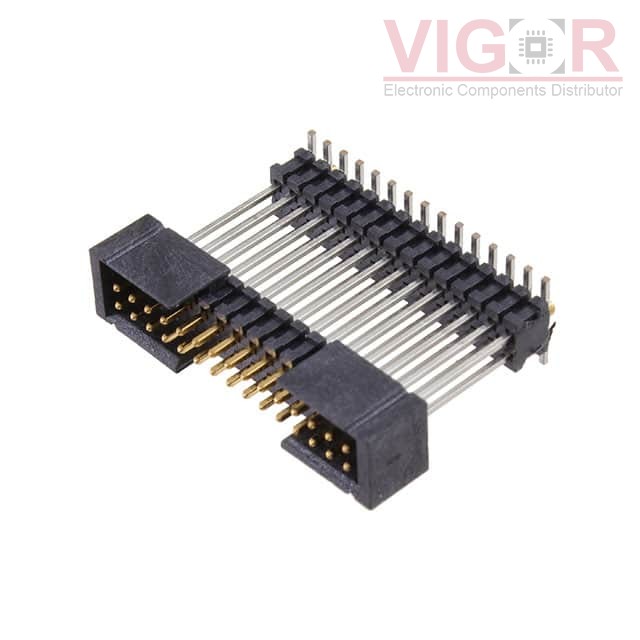

Image is for reference,
please contact us to get the real picture

Part No :

FW-15-05-F-D-505-075-ES-A

Manufacturer
Samtec, Inc.
Description
CONN HDR 30POS 0.05 STACK SMD
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FW-15-05-F-D-505-075-ES-A PDF
Availability
39 pieces
Unit Price
$6.81000

Current price of FW-15-05-F-D-505-075-ES-A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FW-15-05-F-D-505-075-ES-A Specifications
Type Description
Series:Flex Stack, FW
Package:Tube
Part Status:Active
Number of Positions:30
Pitch:0.050" (1.27mm)
Number of Rows:2
Row Spacing:0.050" (1.27mm)
Length - Overall Pin:0.580" (14.732mm)
Length - Post (Mating):0.075" (1.905mm)
Length - Stack Height:0.505" (12.827mm)
Length - Tail:-
Mounting Type:Surface Mount
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):3.00µin (0.076µm)
Color:Black
