1054020022

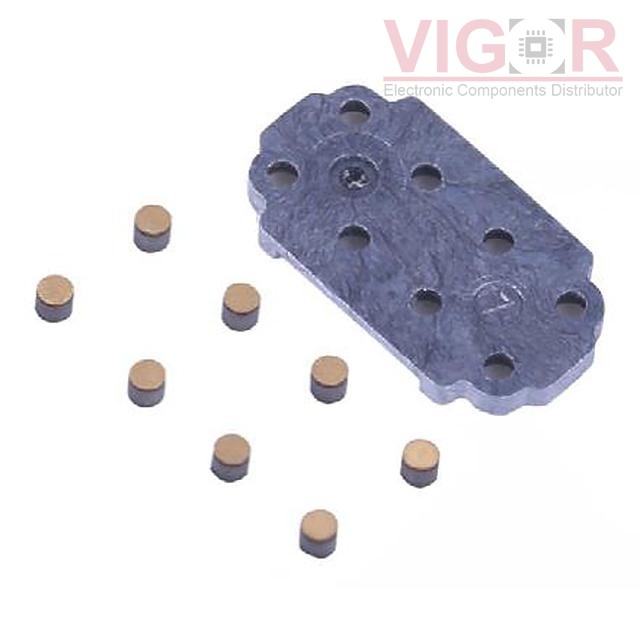

Image is for reference,
please contact us to get the real picture

Part No :: 1054020022

Manufacturer: Woodhead - Molex

Description: CONN HDR 1POS STACK SMD GOLD

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: 1054020022 PDF

Availability: 10774 pieces

Unit Price: ~~$1.04000~~

Current price of 1054020022 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1054020022 Specifications

Type	Description
Series:	105402
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Number of Positions:	1
Pitch:	-
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	-
Length - Post (Mating):	-
Length - Stack Height:	-
Length - Tail:	-
Mounting Type:	Surface Mount
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	30.0µin (0.76µm)
Color:	-
