961420-8041604-AR

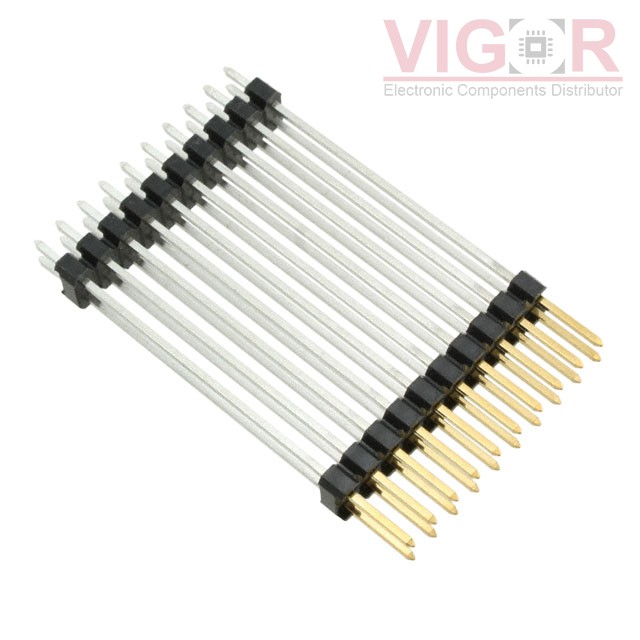

Image is for reference,
please contact us to get the real picture

Part No :: 961420-8041604-AR

Manufacturer: 3M

Description: CONN HDR 20POS 0.1 STACK T/H

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: 961420-8041604-AR PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of 961420-8041604-AR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

961420-8041604-AR Specifications

Type	Description
Series:	961
Package:	Bulk
Part Status:	Obsolete
Number of Positions:	20
Pitch:	0.100" (2.54mm)
Number of Rows:	2
Row Spacing:	0.100" (2.54mm)
Length - Overall Pin:	1.638" (41.600mm)
Length - Post (Mating):	0.256" (6.500mm)
Length - Stack Height:	1.252" (31.800mm)
Length - Tail:	0.130" (3.300mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	Flash
Color:	Black
